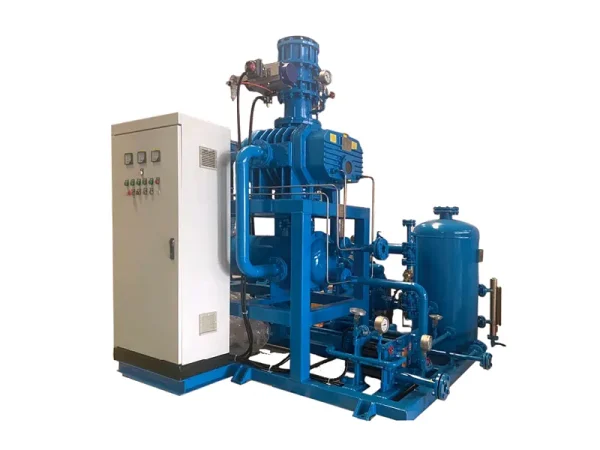

JZJQ-type tri-lobe gas-cooled roots vacuum system is made up of2 ormore gas-cooled Roots Vacum Pumps,which can be automatically controlled through a variety of instruments.Due to the limitations of pumping speed and structure of the dry screw vacum pumps and the claw vacuum pumps which are not suitable for some application requirements,thus the tri-lobe gas-cooled Roots pumps can construct an oil-free pumping system with large rate at rough vacum,which are widely used in the aerospace,electric power,iron and steel processig,pharmaceutical and chemical industries. At present,ELMVAC has mass-produced the ZJQ10000 and ZJQ20000 gas-cooled Roots pump.

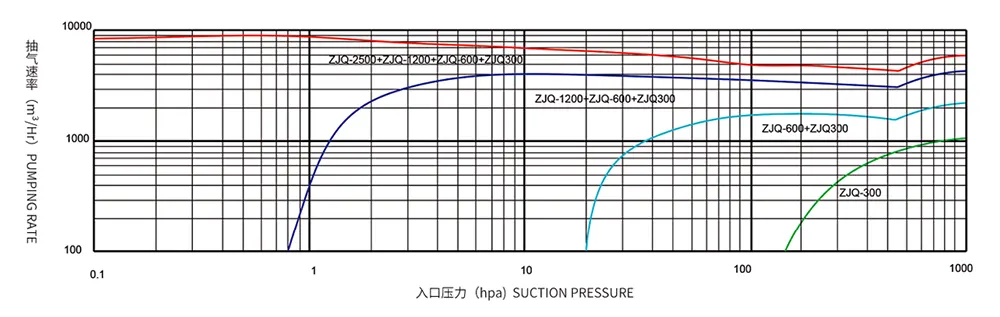

PERFORMANCE CURVE

APPLICATION

·The JZJQ vacuum unit features high speed, compact size, oil-free operation, and high pumping speed.
·The JZJQ vacuum unit can also be started at any pressure using an optional motor and heat exchanger, and the pumping speed of the air-cooled Roots pump can be adjusted using variable frequency control.
·The JZJQ vacuum unit also features short pumping time and high roughing speed.
